Capacity 500 - 20000 kg
The trolley enables the exact positioning or easy traversing
of large loads with either manual or powered hoisting
equipment.
Features
• It has excellent rolling features due to machined steel
wheels mounted on prelubricated, encapsulated ball
bearings.
• Adjustable to fit a wide range of beam widths and
profiles (e.g. INP, IPE and IPB).
• Adjustments are made by rotating the clevis load bar
which also ensures the centred positioning of the hoist
in the clevis – no creeping to the left or the right.
• The trolley wheels are designed for a max. beam profile
incline of 14 % (DIN 1025 - part 1).
• Trolleys are in accordance with the UVV and
machinery directives.
Options
• Rotating hand chain guide.
• Stainless steel hand chains.
• Buffers
• Corrosion resistant version
• Explosion protection
• Locking device to secure the trolley in position on the
beam (park position e.g. on ships).

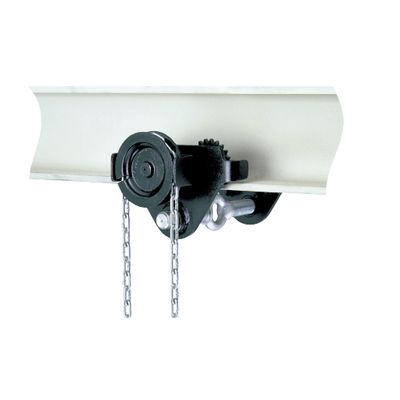

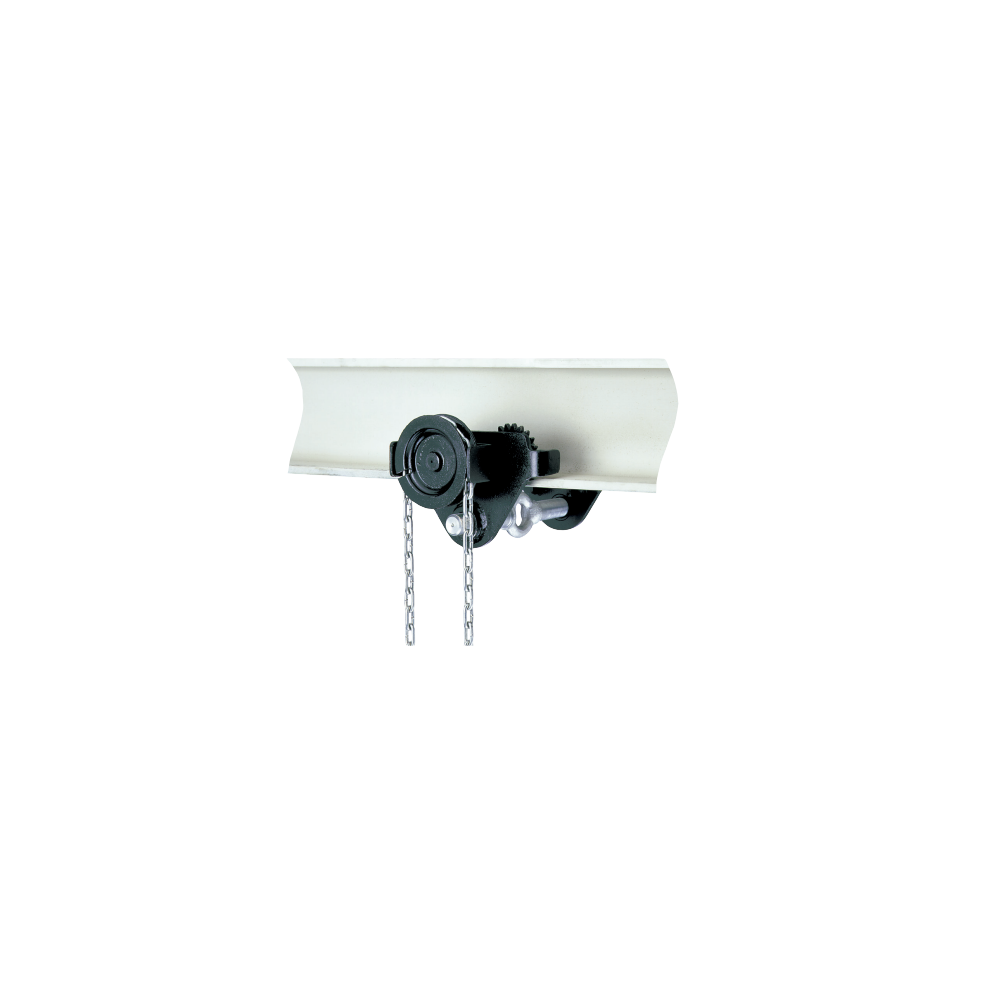

Geared Trolley HTG Yale
