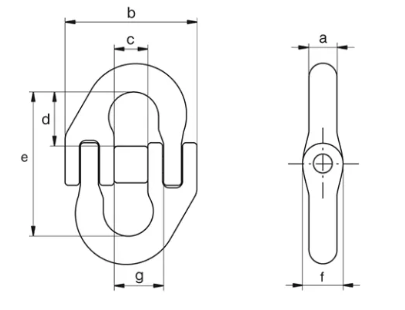

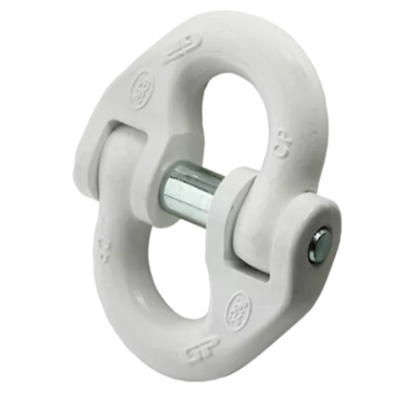

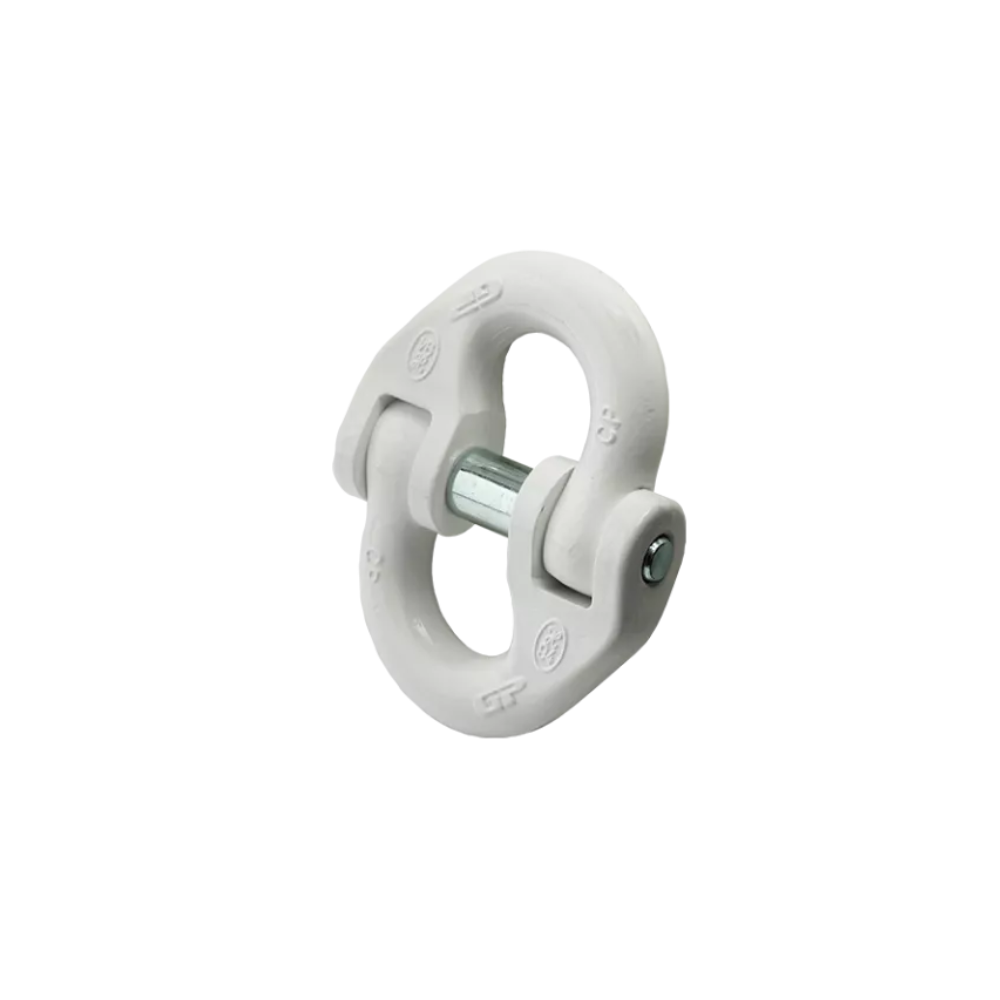

The Green Pin® Connecting Link EN1677-1 is a grade 8 connecting link according to European standard for components for sling EN 1677-1. These connectors provide fast, easy assembly by using just a hammer. It is designed to connect eye and eye swivel hooks and master links to grade 8 chains all together. The spring bush ensures that the pin stays secured in place within the two halves of the connecting link. The Green Pin® Connecting Link EN1677-1 is available in a range to suit 6 mm up to 32 mm grade 8 chain.
Certification on request: 2.1, 2.2, 3.1, MTCa, MPIb, DGUV
- Material: alloy steel
- Marking: According to standard
- Temperature range: -40°C up to +200°C
- Finish: painted white
- Standard: EN 1677-1
- Safety factor: 4:1
- Grade: 8
