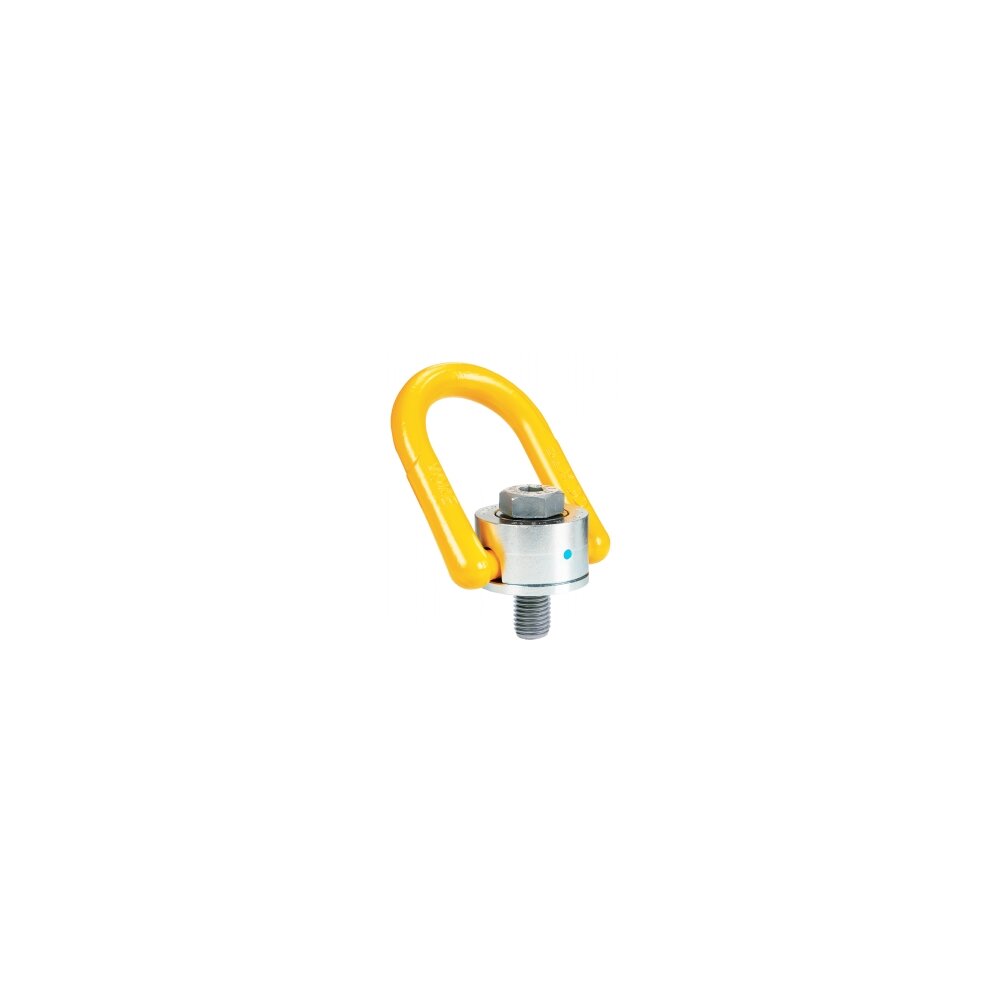

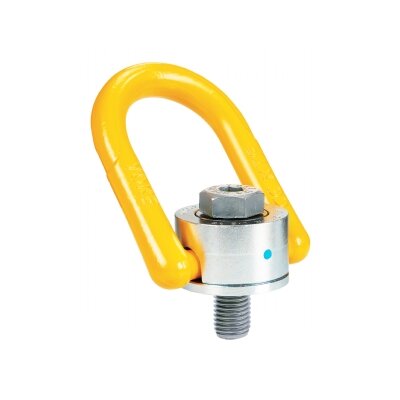

Lifting Point 8-232 UNC Thread

E-mail View PDF
  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are UNC thread.
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated

Show more

Show all variants

Part code:

Filters & subcategories

Show results
  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are UNC thread.
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Quick and simple assembly, just a tapped hole is required.
  • Material: Forged alloy steel, quenched and tempered
  • Marking: According to standard
  • Standard: EN 1677-1

asset_image
