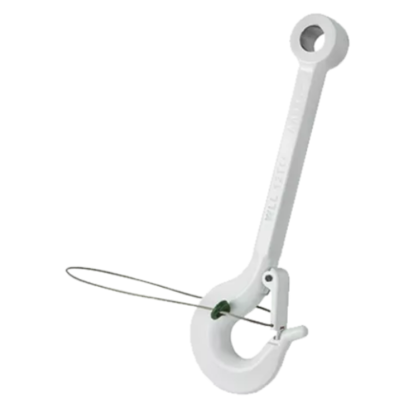

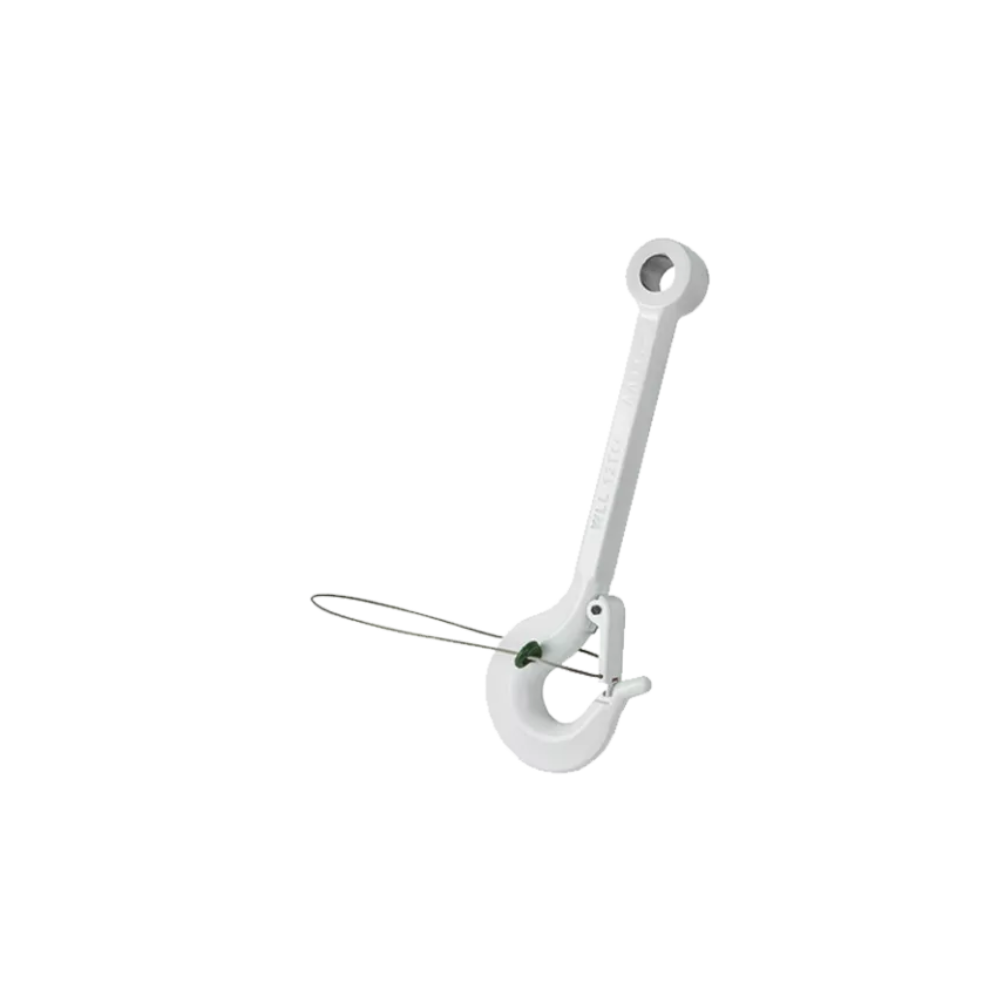

The Green Pin® ROV Shank Hook E is a grade 8 eye hook with a long shank which has been developed for release and retrieve sub-sea operations with a remotely operated vehicle (ROV). Attached to the body and latch of the hook is a wire rope that can be grabbed with an ROV arm. This enables the ROV operator to easily manipulate the latch and thereby to swiftly open and close the hook. The hexagonal shape of the shank makes it easy to grab the hook.The design of the hook and the smooth powder coated finish reduces wear on lifting slings. The ROV shank hook is equipped with a safety latch, which is fitted with a stainless-steel spring and which can be locked with a split pin. The hook tip extension keeps the latch in place, which guarantees full safety and makes aiming, steering and hooking up easier.The white coating of the Green Pin® ROV Shank Hook optimizes visibility under water and ensures its long-term durability. The ROV shank hook is available in a range with a working load limit from 12 up to 80 tons.
Certification on request: 2.1, 2.2, 3.1, MTCa, MPIb
- Material: Alloy steel
- Marking: CE-marked
- Temperature range: -40°C up to +200°C
- Finish: Painted white
- Safety factor: 4:1
- Grade: 8
