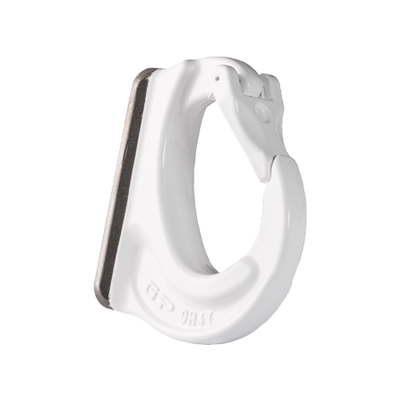

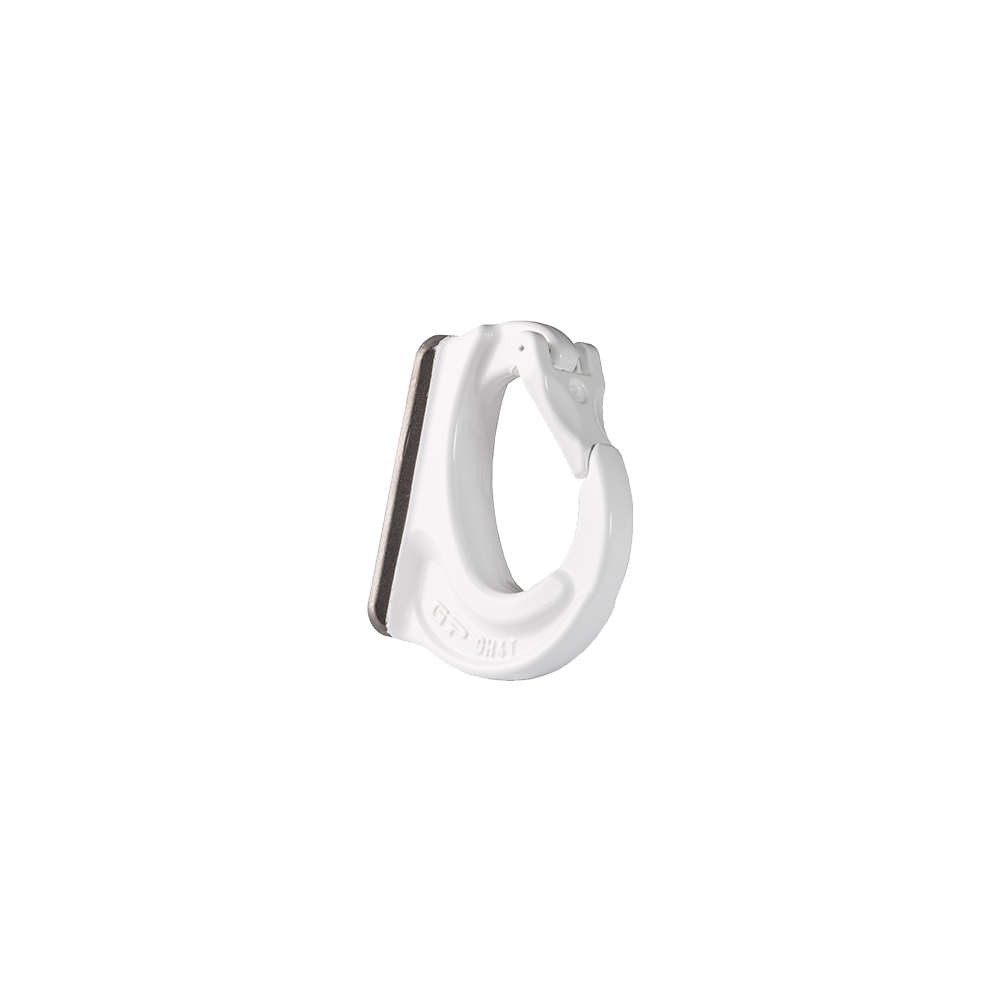

These excvator hooks are welded directly to the booms of bucket or crane loaders. (Welding instructions are supplied with each hook). These hooks can also be welded on a beam to create a lifting beam. The large surface with chamfer makes the welding easy and safe. Latches are fitted as standard, to prevent accidental unhooking.
Excavator Hooks is available in a range with a working load limit from 1 t. up to 15 t.
Certification on request: 2.1, 2.2, MTCa, MPIb
- Material: Alloy steel, quenched and tempered
- Temperature range: -40°C up to +200°C
- Finish: Painted white
- Note: Lifting with the teeth of an excavator is not allowed. Welding must be done in accordance with DIN 5817 resp. 15429, by a qualified welder according to EN 287-1.
- Safety factor: 4:1
- Grade: 8
