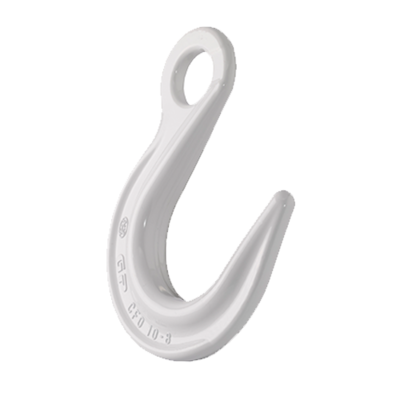

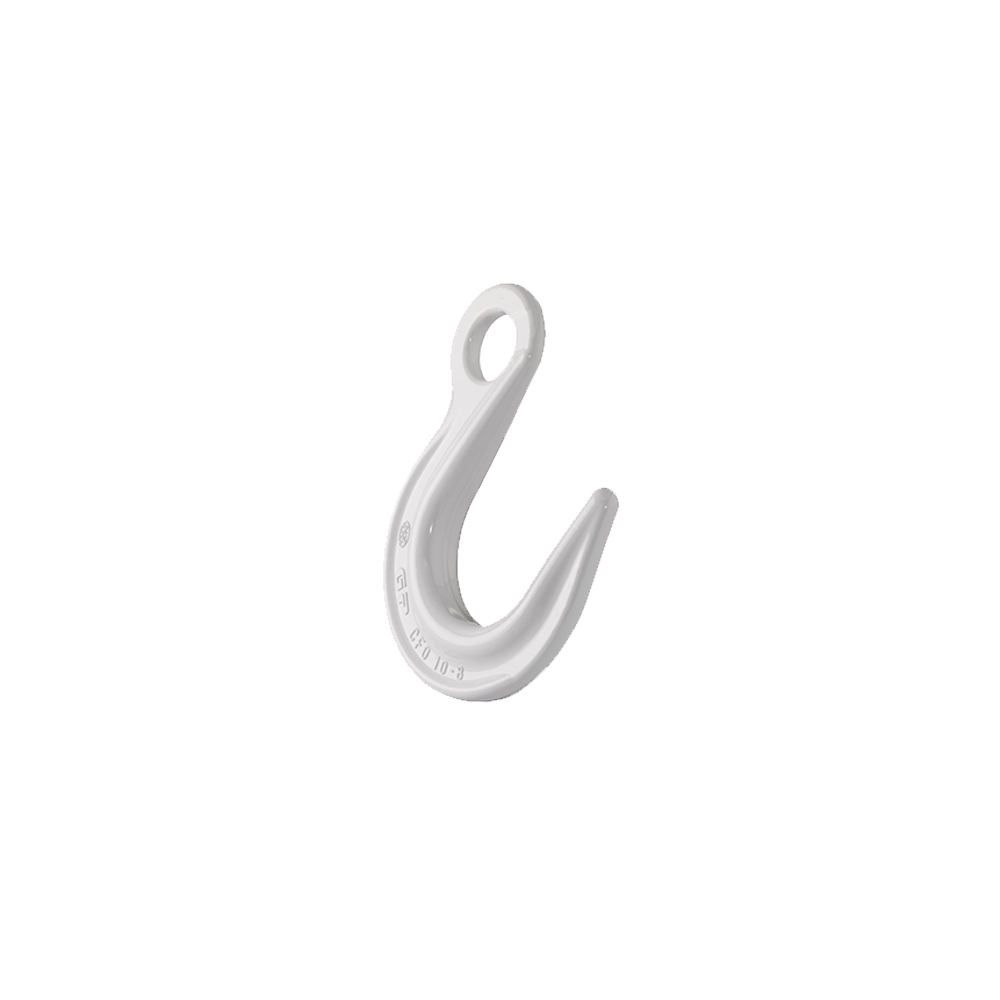

The Green Pin® Foundry Hook E is a grade 8 eye foundry hook. The throats are designed to accommodate standard trunnions, whereas the tips enable easy insertion into the holes of the melting pots. These hooks must be used for specific applications in foundries as they do not have safety latches. The Green Pin® Foundry Hook E is available in a range to suit 6 mm up to 32 mm grade 8 chain.
Certification on request: 2.1, 2.2, 3.1, MTCa, MPIb, DGUV
- Material: Alloy steel, quenched and tempered
- Temperature range: -40°C up to +200°C
- Finish: Painted white
- Note: from 8.2 t without flat part
- Safety factor: 4:1
- Grade: 8
