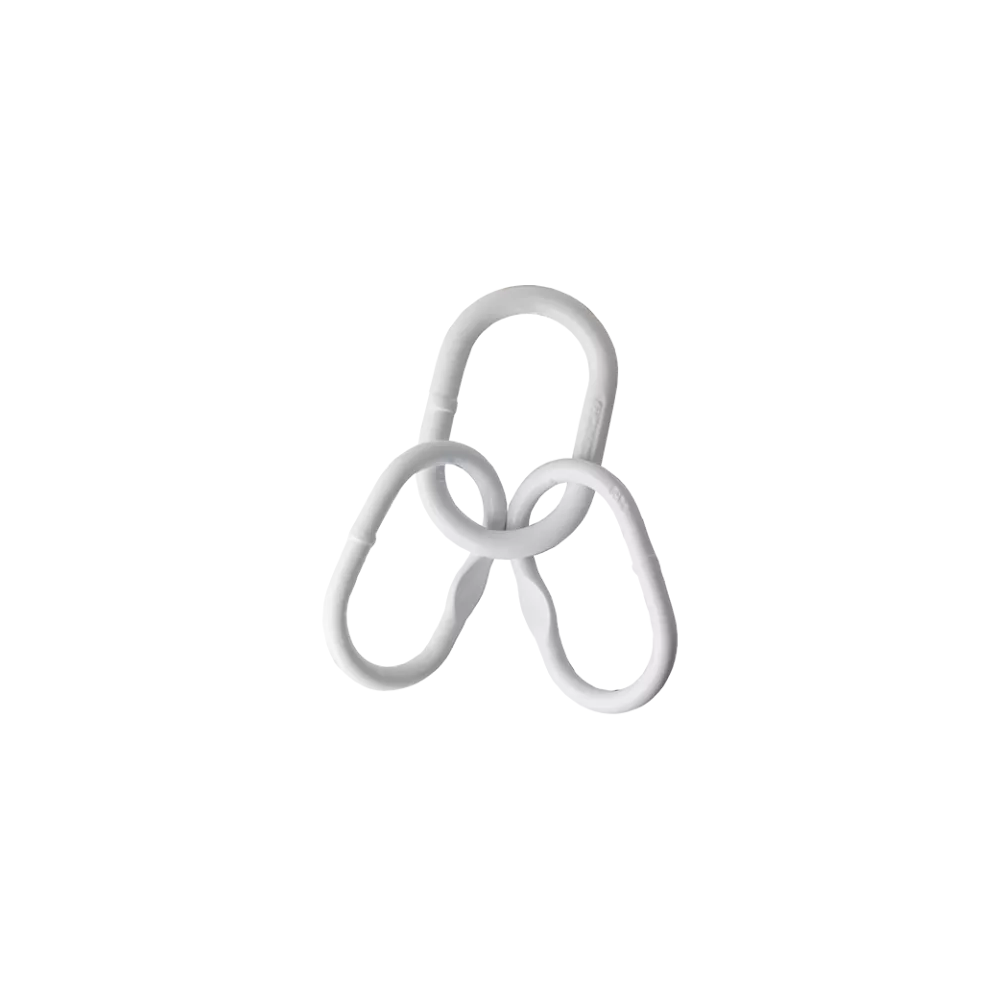

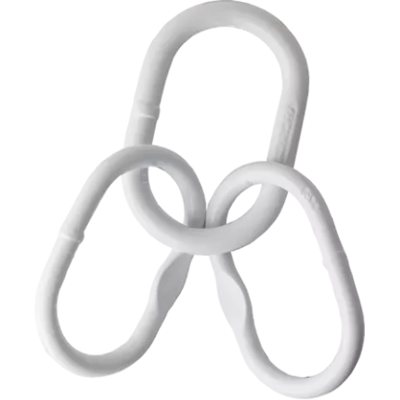

The Green Pin® Master Link Assembly EN1677-4 is a grade 8 master link assembly according to European standard for components for sling EN 1677-4. This welded master link assembly is designed for 3 or 4 leg sling. The flat on the eye enables the assembly with an omega link or on a thimble. The Green Pin® Master Link Assembly EN1677-4 is available in a range with a working load limit from 2.5 t. up to 100 t.
Certification on request: 2.1, 2.2, 3.1, MTCb, MPIa
- Material: Alloy steel
- Marking: According to standard
- Temperature range: -40°C up to +200°C
- Finish: Painted white
- Standard: EN 1677-4
- Note: From 60 t without flat part
- Safety factor: 4:1
- Grade: 8
