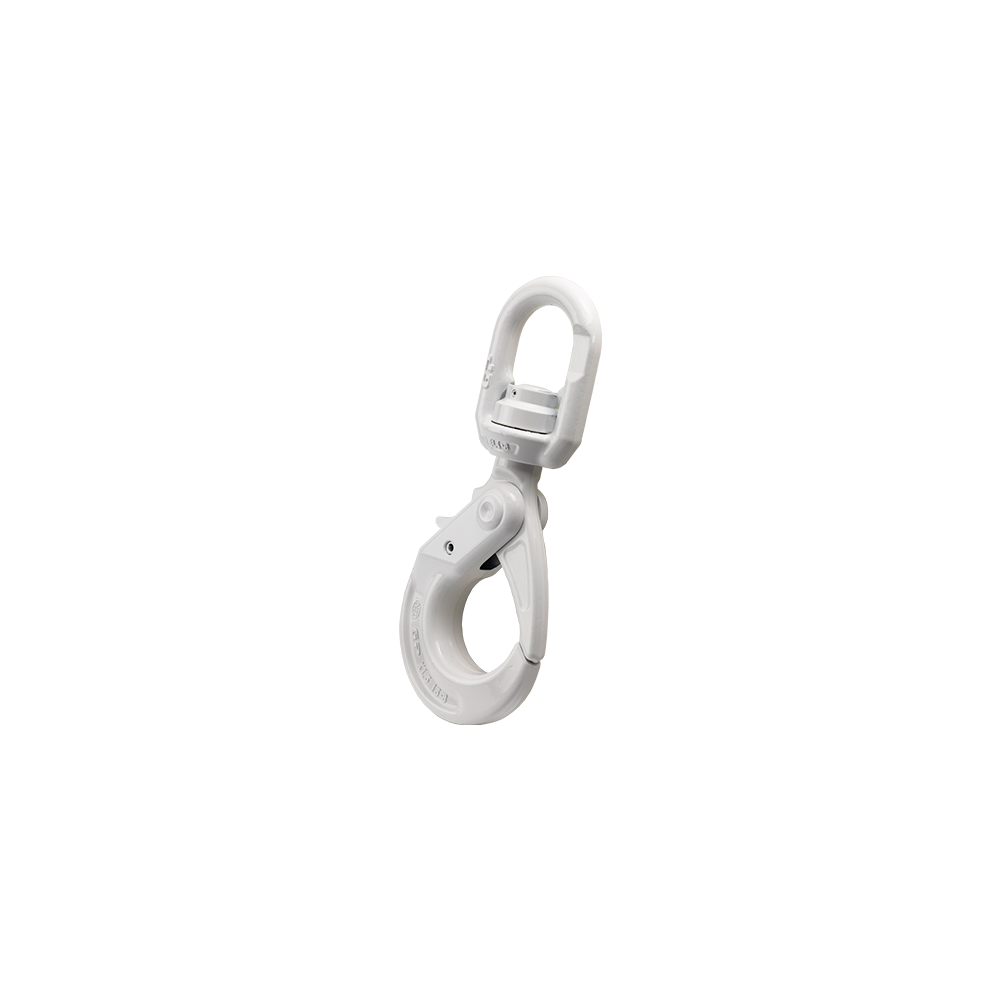

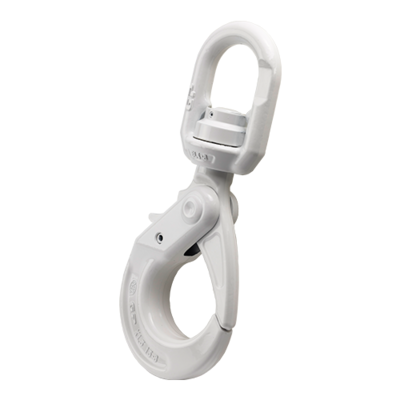

The Green Pin® Self-Locking Hook SE EN1677-3 is a grade 8 swivel self-locking hook with eye according to European standard for components for sling EN 1677-3. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The large eye, designed with a flat enables an easy assembly on anti-rotating wire rope slings (with an omega link or with thimbles). These hooks are fitted with a needle roller thrust bearing. This enables smooth, easy rotation under load. The eye of the hook can be connected to grade 8 chain with a connecting link or to a webbing with a web sling connector. The Green Pin® Self-Locking Hook SE EN1677-3 is available in a range to suit 5/6 mm up to 18/20 mm grade 8 chain.
Certification on request: 2.1, 2.2, 3.1, MTCa, MPIb, DGUV
- Material: Alloy Steel
- Marking: According to standard
- Temperature range: -40°C up to +200°C
- Finish: Painted white
- Standard: EN 1677-3
- Note: Equipped with needle roller thrust bearing to enable rotation under load
- Safety factor: 4:1
- Grade: 8
