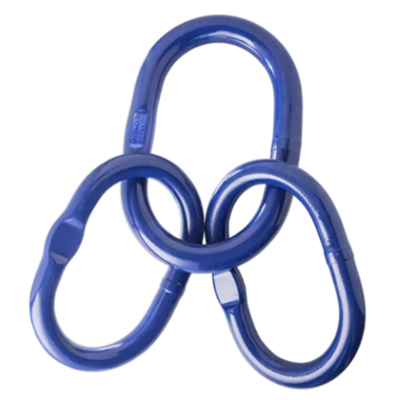

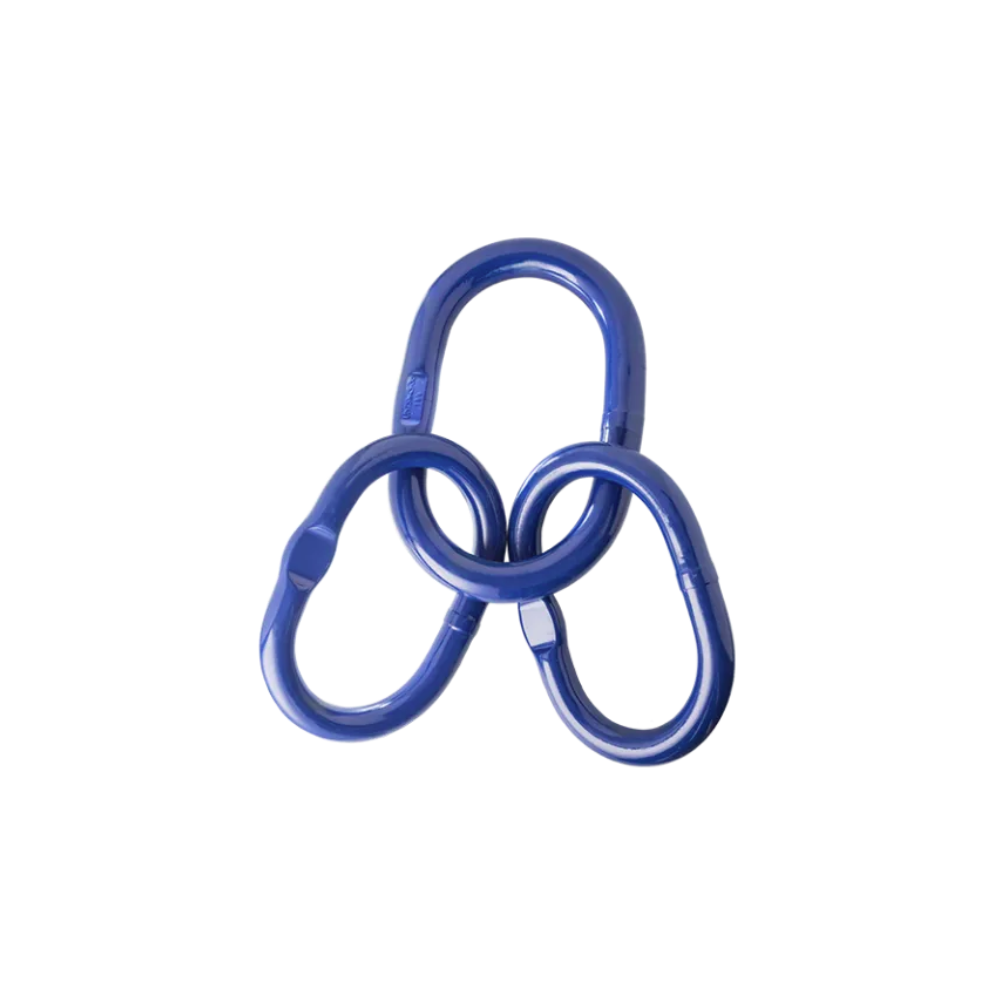

The Green Pin® Wider Master Link Assembly is a grade 10 master link assembly with larger inside dimensions. This welded master link assembly is designed for 3 or 4 leg slings. This range is complementary to the existing range UMS and UMTS. The extended width of the main link enables you to connect the link to a connection point, which is wider than usual or to fit in a large crane hook. A flat part on the link enables assembly with an omega link or with a thimble. The Green Pin® Wider Master Link Assembly is available in a range with a working load limit from 4.3 t up to 75 t.
Certification on request: 2.1, 2.2, 3.1, MTCb, MPIa
- Material: alloy steel
- Temperature range: -40°C up to +200°C
- Finish: painted blue
- Safety factor: 4:1
- Grade: 10
