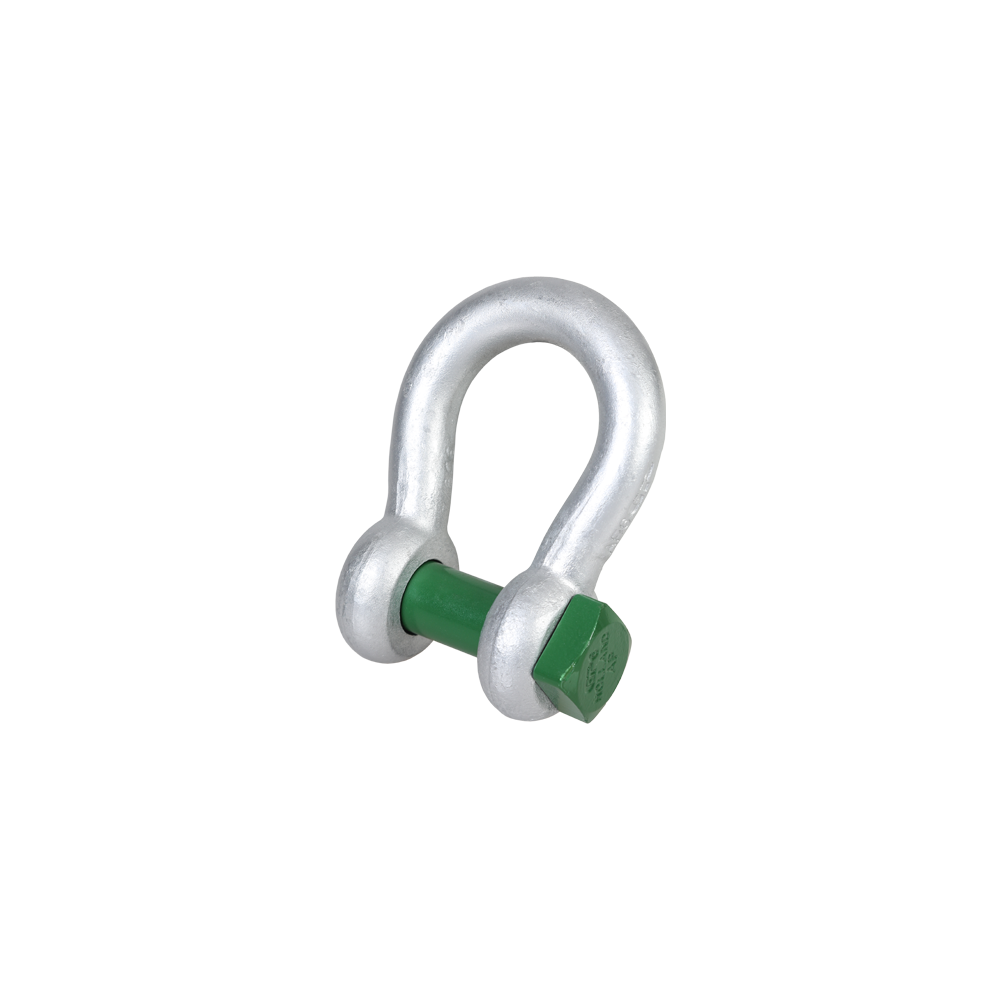

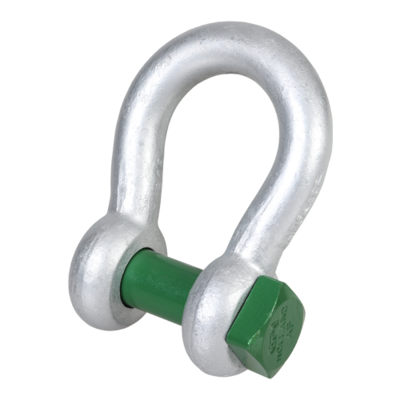

The Green Pin® Fishing Bow Shackle SQ is a bow shackle with a square headed screw pin. The square head fits commonly used tools on fishing ships. Galvanization of the Green Pin® Fishing Bow Shackle SQ ensures its long-term durability. Also, there is a chamber in the shackle eye of the Green Pin® Fishing Bow Shackle SQ which hides the screw thread and reduces wear of rope. The Green Pin® Fishing Bow Shackle SQ is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 2 upto 25 ton.
Certification on request: 2.1, 2.2, 3.1, MTCa
- Material: Bow and pin high tensile steel, quenched and tempered
- Marking: According to standard, CE-marked
- Finish: Hot dipped galvanized
- Standard: EN 13889
- Safety factor: 6:1
- Grade: 6
