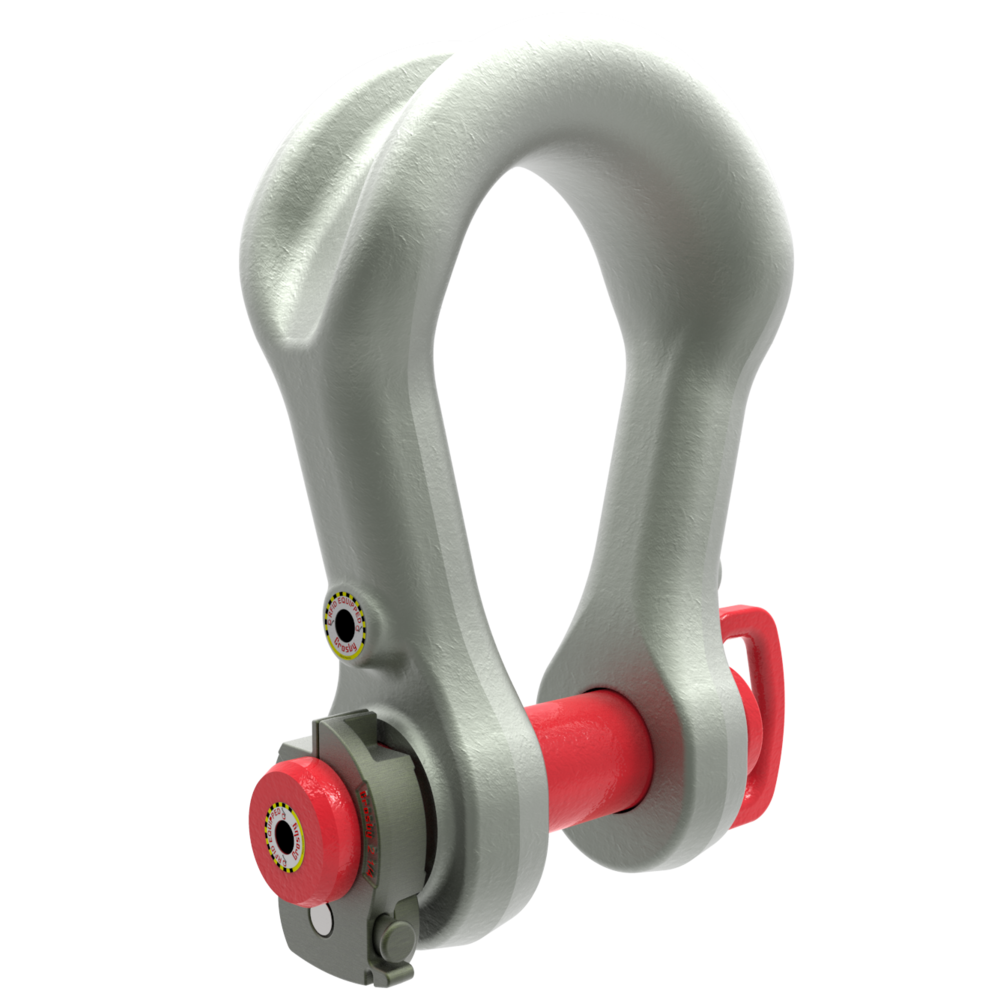

The Crosby G-2160E Easy-Loc wide body shackle is designed for heavy lifting applications using wire rope, synthetic web and round slings. Its wide bow increases usable sling strength by at least 15% and helps extend wire rope sling service life. Available with working load limits (WLL) from 30 to 600 metric tonnes, it provides a lifting connection for demanding industrial operations.
Best used for:
Heavy lifting operations requiring high-capacity connections and improved sling load distribution.
Lifting assemblies using wire rope or synthetic slings, including inline bow-to-bow connections.
Product benefits:
Wide body designincreases usable sling strength by at least 15%.
Quenched and tempered alloy steelprovides strength for demanding lifting applications.
Individual proof testing and magnetic particle inspectionsupport documented quality verification.
DNV type approval and supplied databooksupport traceability and lifting documentation.
Hot-dip galvanized or Dimetcoted finish, depending on size, provides corrosion protection.
- Material: Forged alloy steel - quenched and tempered.
- Marking: According to standard, CE-marked
- Temperature range: -40°C up to +204°C
- Finish: Bows are furnished Dimetcoted, and pins are Dimetcoted, then painted red.
- Standard: DNV-OS-E101, DNV-ST-0377, DNV-ST-0378
Additional Documents
