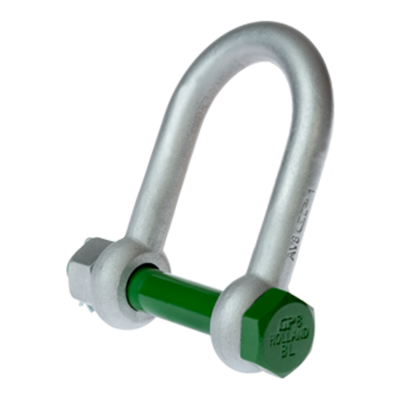

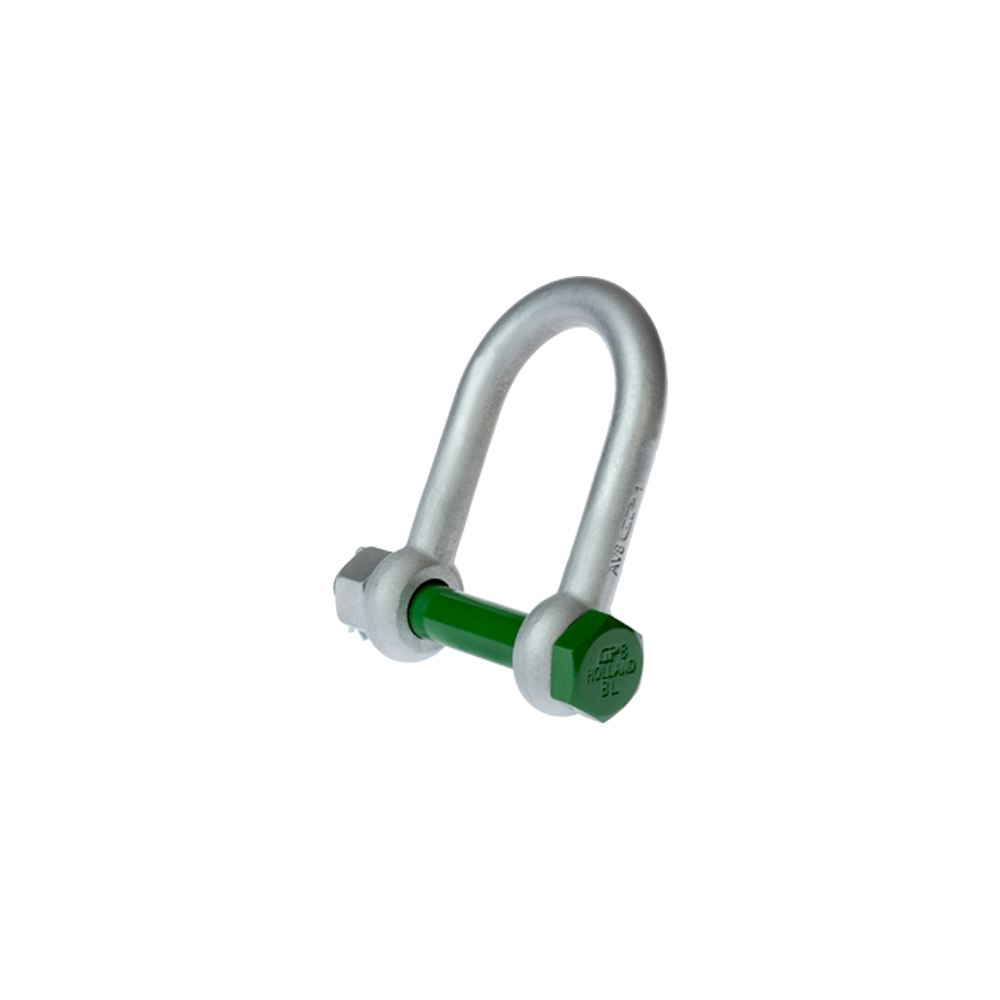

The Green Pin BigMouth® Dee Shackle BN is ideal for use in situations where a lifting point is out of reach for a standard shackle. The BigMouth® Dee Shackle BN has a wider inside width and a longer inside length enabling you to connect the shackle to non-typical lifting points. Such lifting points are for example often found in the steel sheet pile wall industry. The lifting points on the pile walls are usually set at a depth at which only a Green Pin BigMouth® Dee Shackle BN can be used to complete the job. The Green Pin BigMouth® Dee Shackle BN is fitted with a safety bolt. Long-term durability is assured due to the galvanization of the Green Pin BigMouth® Dee Shackle BN. The shackle conforms to a range of certifications. The Green Pin BigMouth® Dee Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 4.6 up to 15.5 ton.
Certification on request: 2.1, 2.2, 3.1, MTCa
- Material: bow and pin alloy steel, quenched and tempered
- Marking: CE-marked
- Temperature range: -20°C up to +200°C
- Finish: hot dipped galvanized
- Safety factor: 5:1
- Grade: 8
